Update on Anytone Encryption

Wyoming SurvivalDecember 29, 2022December 30, 2022Uncategorized

Ok I’m going to admit I was wrong in my post about encrypting the Anytones. 90% of the post was correct but 10% was wrong.

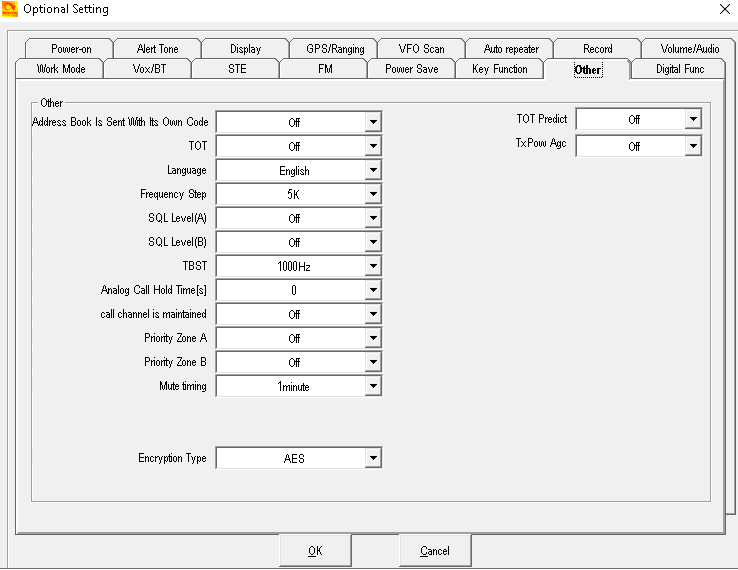

Going back to Optional Settings in the CPS goto other and change it to AES. As seen below. Then if you already have the encryption keys in the AES Encryption key section go ahead and write to the radio.

Here is where I was having the problem. When I went to the setting Digital Encrypt on the radio I didn’t know I needed to scroll up or down for the AES encryption keys…..🤦‍♂️ Hey this is why I’m writing all this up for everyone!

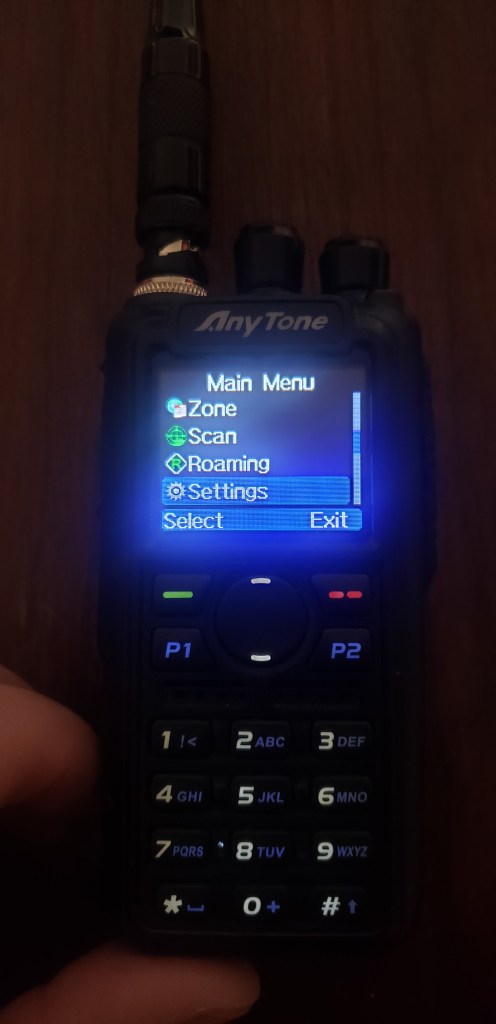

After changing it back to AES on the CPS and writing to the radio goto settings.

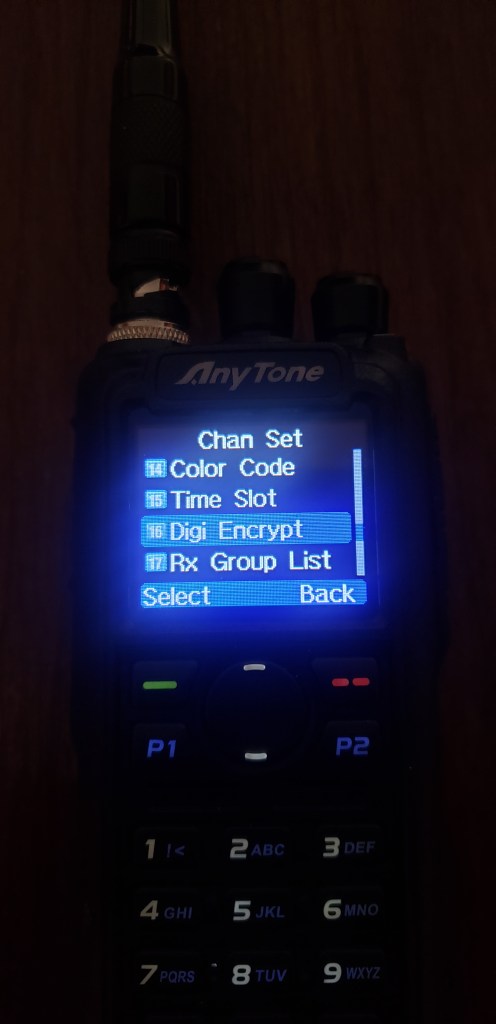

Scroll down to Digi Encrypt and select it

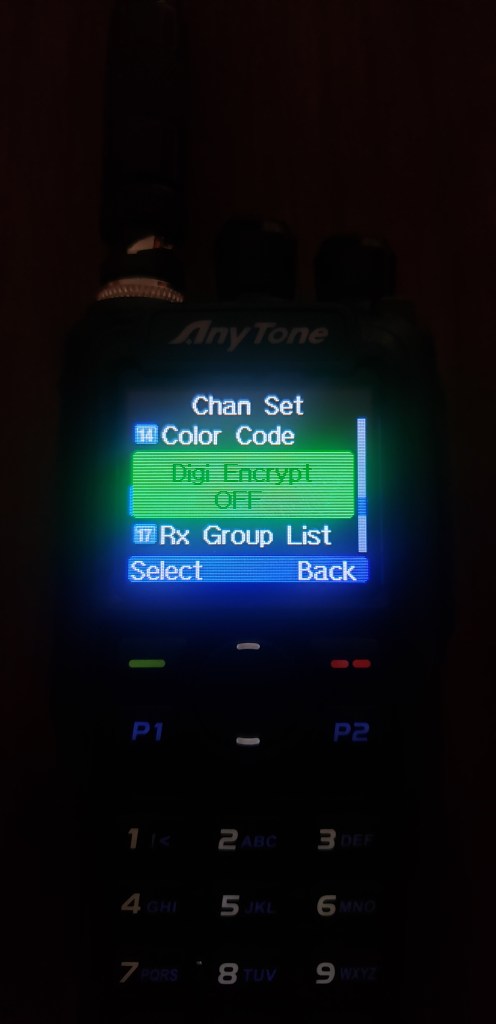

This is the screen you should see after selecting it. Now scroll up or down to select the correct key

And that’s how you use the AES encryption feature.

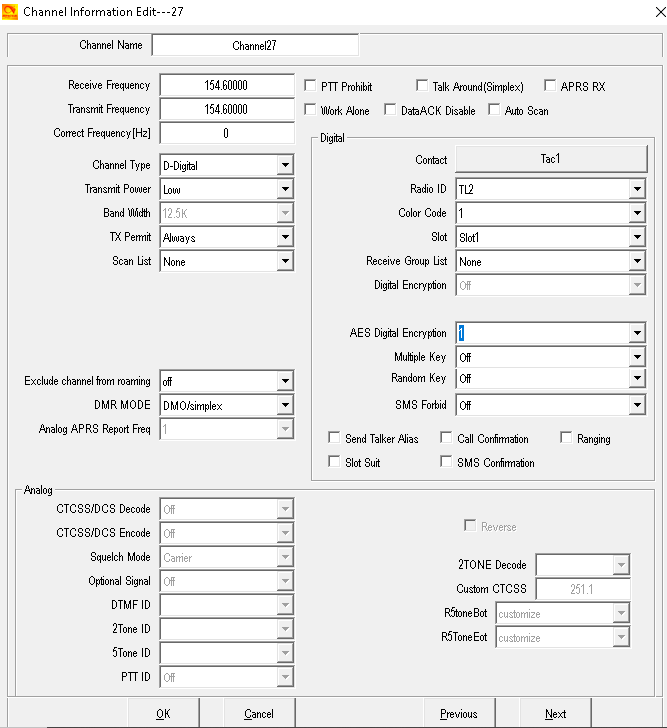

If you look at the picture below you will see whe window you program channels into the Anytone. If you look on the middle right hand side where AES is highlighted thats how you can encypt a programmed channel if you want to. You just select the key you want and write to radio.

For most of the encryption process you can check out my previous post here

Finally I have to give a shout out the my Instagram friend who is also learning the Anytone and actually has helped me out with some of the stuff. You know who you are!

7 thoughts on “Update on Anytone Encryption”

Foxtrot 65 says:

December 31, 2022 at 4:43 pm

I’ve a couple of these radios but I never got around to figuring out the more advance things they can do, like encryption. Thanks for your series on them!

Any chance of compiling it into a pdf guide for download?

LikeLike

Reply
1. Wyoming Survival says:

  December 31, 2022 at 11:28 am

  I can try……😆 it might be a bit.

  LikeLike

  Reply
Damon says:

January 15, 2023 at 3:54 pm

I have been working on this for a few years on and off and I have all of my setting the same as y’all have. I am using Band 14, but that shouldn’t matter. I’ll keep messing with it.

LikeLiked by 1 person

Reply
1. Wyoming Survival says:

  January 15, 2023 at 3:56 pm

  So go back to the Encrypting The Anytone post I put up. Its all on there now how to Encrypt them

  LikeLike

  Reply
Jasper says:

March 28, 2023 at 6:49 am

Thank you for a great guide. Was wondering if anyone has the same issue: Common encryption works just fine (CSS: Optional Setting / Other / Encryption Type: Common. ), but AES does not. I triple-checked that the I have identical AES keys between the radios. FW 3.01 on both units

LikeLiked by 1 person

Reply
1. Ian says:

  April 6, 2023 at 8:36 am

  I have the same problem. Using CPS and Firmware 3.1 common encryption works, AES does not. I’ve tried everything I can think of.

  LikeLike

  Reply
  1. Jasper says:

    April 6, 2023 at 9:06 am

    Just tinkered on and just found a solution: I had to enable multi key and random key – don’t ask me why.

    LikeLike
